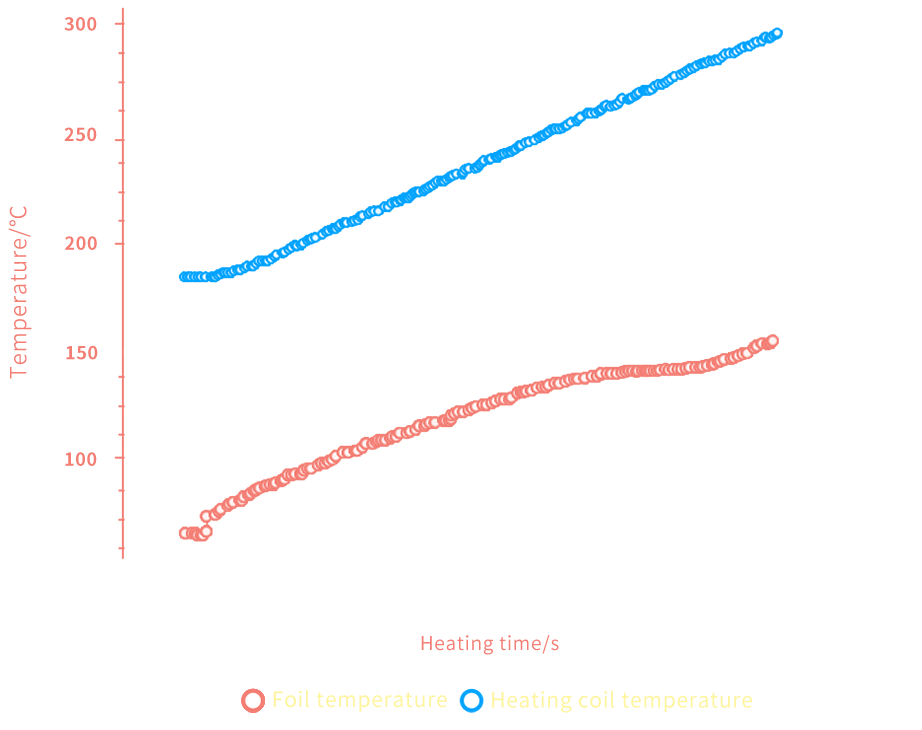

Direct Temperature-Monitoring of Foil, High Precision

Real-time direct monitoring of the foil temperature, for optimal thermoforming results
Proprietary cylinder technology, ensuring stable pressure during thermoforming
Enhance product quality and patient experience

One-Touch Thermoforming, Easy operation

Data Recording, Great Traceability

Collect intraoral scanning data of the patient
Conduct orthodontic treatment planning and output staging scheme
Generate a series of CAD tooth models for manufacturing based on the staging scheme
Make tooth models by 3D printer

Conduct edge polishing if necessary
Remove the trimmed aligners from tooth models
Trim aligners mannually or with a automatic trimming machine

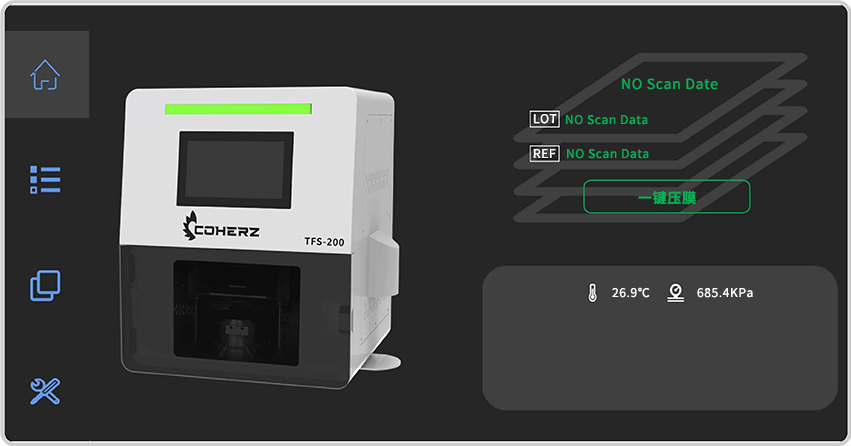

Fabricate clear aligners with Coherz TFS-200 thermoformer on the 3D printed models

Coherz TFS-200 (single aligner mode)

Work Pressure	3.5 bar~6.0 bar
Single Forming Time	45s~100s
Compatible Model Types	3D Printed Models, Plaster Models
Compatible Sheet Size	Round Sheet: ф120mm-ф125mm Square Sheet: 125mmx125mm

Coherz TFS-200D (Dual aligner mode)

Work Pressure	3.5 bar~6.0 bar
Single Forming Time	45s~100s
Compatible Model Types	3D Printed Models, Plaster Models
Compatible Sheet Size	Round Sheet: ф133mm-ф135mm Square Sheet: 135mmx135mm
